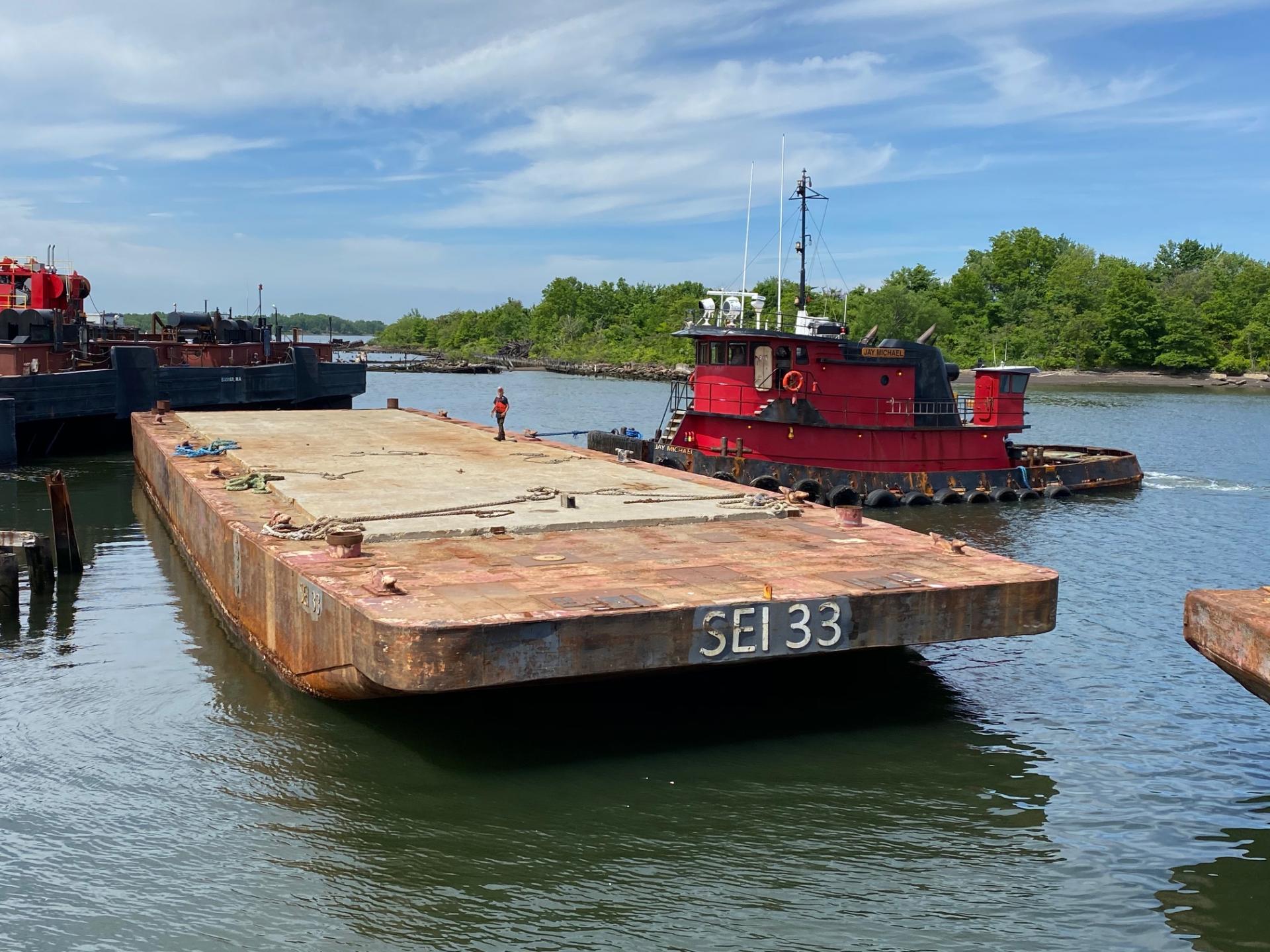

SEI-33

Print Specs Displacement Table Drawing

Type	Spud Barge
Class	Inland
Sterling #	09-105
Length	152'
Beam	40'
Depth	10'
Gross Tonage	510 Approx.
Light Draft
Compartments	8
Bulk Heads	(7) Transverse
Spud Wells	(2) 18" Round
Spuds	(2) 16" X 60'
Capacity
Other	All welded steel ex: railroad car float section, with forward raked bottom, square stern and parallel armor plate sides. The bottom has slight dead-rise.
