SEI-39

Print Specs Displacement Table Drawing

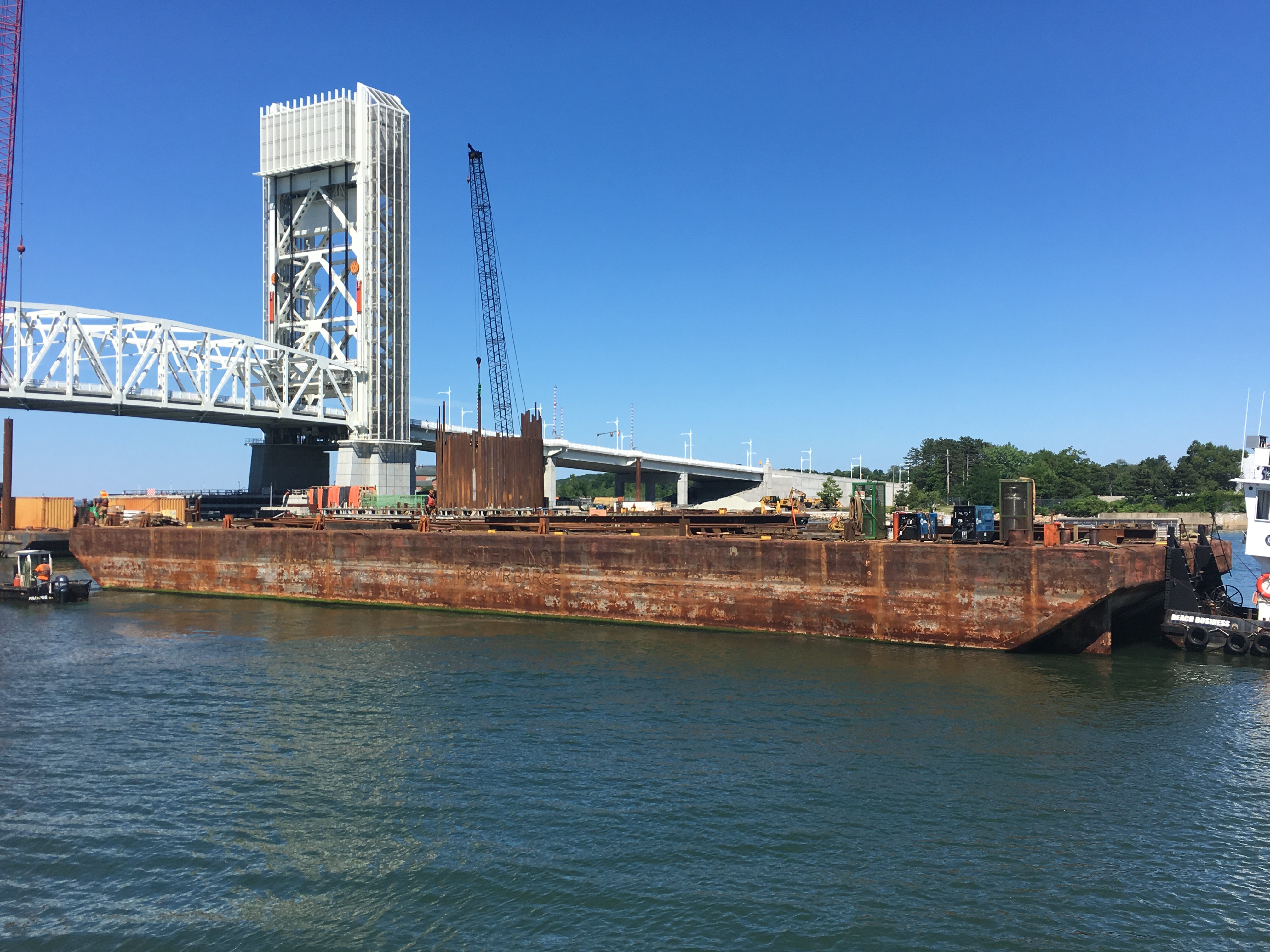

Type	Spud Barge
Class	None
Sterling #	09-111
Length	165'
Beam	42.5'
Depth	11'
Gross Tonage	697
Light Draft
Compartments	13
Bulk Heads	(2) Longitudinal; (6) Transverse
Spud Wells	(2) 20" Round
Spuds	(2) 40' + 30' x 18"
Capacity	1600 Tons
Other	All welded steel flat deck spud barge, with flat bottom and raked plating at each end and towing skegs. The sides and logs are parallel and straight. There is a 5" concrete wear deck with perimeter stanchions and 4' bin walls.
